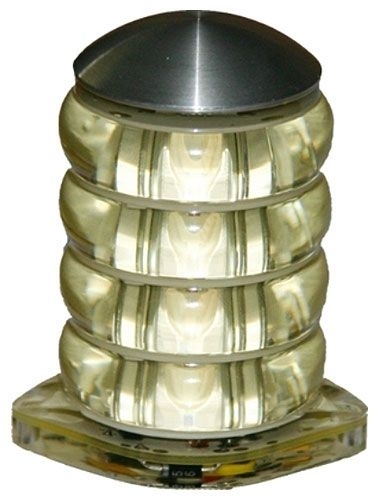

LED-Electronic Rotating Beacon for ultra-light aircraft
Product information "LED-Electronic Rotating Beacon for ultra-light aircraft"
Due to continuous development of the anti-collision lights we now can offer an ACL in LED-Technology which allows a longer lifetime and less weight with the same brilliancy as a conventional Xenon-Flash based ACL.
The ERB is water and seawater resistant. It is cast in a high-optic and scratch-resistant plastic module. The entire control element is integrated into the ERB module where the ERB's dimensions determine the required space; therefore no "Blackbox" is needed.
The light is prewired to allow easy connection to a 2-lead cable of minimum 1.5 sqmm cross section. Flanges allow simple fixture. In addition, it can be affixed to the fuselage or rudders by means of a silicon adhesive. An instruction manual and the shrink tubing required for the assembly are included in the ERB package.
The ERB is the first ACL worldwide in LED-Technology complying with FAR23 regulations.
Technical specifications:
Color: red
Operating voltage 10 -17 V/DV, typically 12.8 - 1.4 V/DC (aircraft power supply)
Fuse: 5 ampere (fusible cut-out or automatic fuse)
Diameter approx. 47 mm
Height approx. 76 mm
Flange to flange approx. 61 mm
Bore diameter 4.5 mm
Weight approx. 175 g with connecting cable
Warranty 5,000 operating hours or max. 3 years
