Becker Avionics Ground radio
Average rating of 0 out of 5 stars
The Becker GK 615 is a portable VHF aviation radio station with an aluminium housing and an integrated AR 6201 transceiver. This package includes the radio station, microphone, battery, charger and carrying accessories. It is suitable for mobile communication tasks, portable use at airfields and operation as a vehicle station.The aluminium housing combines the transceiver and power supply in a transportable unit. A carrying handle makes the station easier to move. The included carrying bag with shoulder strap provides transport between operating locations. A vehicle mount is also supplied.The integrated Becker AR 6201 supports 8.33 kHz and 25 kHz channel spacing. The station belongs to the 6 W RF power class of the GK615 series. Frequency selection and operation are handled at the front of the transceiver. The LCD shows the active frequency and, depending on the operating mode, the standby frequency or memory channel.A PTT button is located on the front panel of the carrying frame. It allows transmission to be activated when using a suitable headset without its own push-to-talk button. A microphone is also included in this package.The battery enables portable operation, and a battery charger is supplied for recharging. A suitable antenna and connections compatible with the intended communication accessories must also be considered when planning the installation.A recorder output for voice recording and a control interface are available as options. These functions are not automatically included in the stated package.The station measures 277 × 165 × 85 mm and weighs approximately 4 kg. For use in aircraft or balloons, the specific equipment variant must meet the requirements of the intended installation and application.Features- Portable aviation radio station with Becker AR 6201- Aluminium housing with carrying handle- Support for 8.33 and 25 kHz channel spacing- Front-panel PTT button- Battery-powered operation for mobile applications- Optional recorder output and control interfaceTechnical specifications- Transceiver: Becker AR 6201- RF power class: 6 W- Channel spacing: 8.33 kHz / 25 kHz- Dimensions: 277 × 165 × 85 mm- Weight: approx. 4 kgScope of delivery- Aluminium housing with AR 6201 transceiver- Microphone- Battery- Battery charger- Carrying handle- Carrying bag with shoulder strap- Vehicle mount
Average rating of 0 out of 5 stars
Aluminum housing with radio AR 6201. For a variety of applications: off-road use, at the airfield as a portable ground station, in aircraft, balloons and as car station. PTT button on the front panel of the support frame, thereby easier use of headsets without press to talk button, voice recorder output for documentation and control interface optional.Dimensions: 277 x 165 x 85 mmWeight: approx. 4 kg Delivery content: Aluminum case with radioMicrophoneBatteryBattery chargerCarrying handleCarrying case with strapCar mountSpeaker Mic. Version
Average rating of 0 out of 5 stars
Transmitting capacity: 10 W
Average rating of 0 out of 5 stars
Car assembly set for Becker Avionics radio transiever Becker GT 6201.
Average rating of 0 out of 5 stars
.
Average rating of 0 out of 5 stars
Transmitting capacity: 10 W
Average rating of 0 out of 5 stars
Becker Avionics bearer frame GK 615 E
Average rating of 0 out of 5 stars
The Becker GT 6201 is a compact VHF/AM transceiver for ground-to-air communication. This version provides 6 W output power and supports both 8.33 kHz and 25 kHz channel spacing. It is designed for fixed installations at airfields and installation in vehicles.Its compact format allows the GT 6201 to be integrated into existing operating desks and consoles. The manufacturer lists main and backup radio applications in control towers and ground communication systems. A suitable installation kit is available as an accessory for vehicle applications.Operation is handled directly at the front panel. The illuminated LCD shows the active frequency and, depending on the operating mode, the standby frequency or a memory channel. Device parameters can be adjusted through the user menu to suit the installation.For frequently used frequencies, 99 user-programmable memory channels are available. Stored frequencies can be assigned a text label. The radio also automatically stores the nine most recently used active frequencies. This allows recurring frequencies to be recalled without entering them again.The dual-watch function in scan mode monitors the active and preset frequencies. The active frequency has priority, allowing a second frequency to be monitored while the main frequency remains selected for communication.Adjustable squelch suppresses unwanted receiver noise. The GT 6201 uses digital signal processing and performs automatic built-in tests. Audio connections include a dynamic microphone input and configurable audio outputs.According to Friebe, the unit is connection-compatible with accessories for the Becker AR 4201 and AR 6201. The microphone, audio accessories, wiring and antenna must be selected to suit the specific installation.The GT 6201 meets ETSI EN 300 676 requirements and holds BAF equipment approval D-0030/2014 for ground radio applications. Its housing measures 61 × 61 × 205.7 mm, and its weight is approximately 650 g.Features- VHF/AM transceiver for ground-to-air communication- 6 W output power- 8.33 and 25 kHz channel spacing- Illuminated LCD- 99 programmable frequency memories with text labels- Automatic storage of the nine most recent active frequencies- Dual watch for monitoring a second frequency- Adjustable squelch- Digital signal processing and automatic built-in tests- Dynamic microphone input- Four configurable audio outputsTechnical specifications- Output power: 6 W- Modulation: AM / A3E- Channel spacing: 8.33 kHz / 25 kHz- Number of channels: 2,280 at 8.33 kHz / 760 at 25 kHz- Dimensions H × W × D: 61 × 61 × 205.7 mm- Weight: approx. 650 g- Operating temperature: −20 °C to +55 °C- Standard: ETSI EN 300 676- BAF equipment approval: D-0030/2014
Average rating of 0 out of 5 stars
Becker Avionics radio transceiver GT 6201Transmitting capacity: 10 W
Average rating of 0 out of 5 stars
The Becker Avionics RT6211, 10 W is a high-performance, remotely installed VHF/AM aviation transceiver with 8.33 kHz and 25 kHz channel spacing, designed for professional and demanding avionics installations. As an advanced development of the proven RT6201, the RT6211 features an increased Design Assurance Level C (DAL C), meeting more stringent requirements for the development and certification of safety-related avionics systems.The RT6211 is part of the proven Becker Avionics 6200 Series and combines compact dimensions, low weight and robust construction with comprehensive communication and intercom functions.Unlike a conventional panel-mounted aviation radio, the RT6211 has no integrated control panel. The radio module is installed at a suitable location within the aircraft and controlled via a separate control unit, such as the Becker RCU6211.This remote concept provides exceptional installation flexibility and is ideal for cockpits where instrument panel space is limited or where the transceiver needs to be installed at another location within the aircraft.DAL C – Designed for Demanding Avionics IntegrationsA major difference compared with the RT6201 is the increased Design Assurance Level C.By raising the Design Assurance Level from DAL D to DAL C, the RT6211 meets more stringent requirements for the development and verification of avionics hardware and software.This makes the RT6211 particularly suitable for demanding certified avionics integrations and professional applications.8.33 kHz and 25 kHz Channel SpacingThe RT6211 supports both modern 8.33 kHz and conventional 25 kHz channel spacing.The frequency range extends from 118.000 to 136.990 MHz.Up to 760 channels are available in 25 kHz operation and up to 2,280 channels in 8.33 kHz operation.The radio therefore meets the requirements for European 8.33 kHz aviation communication.Up to 10 W Transmitter OutputThe high-power version of the RT6211 provides an RF transmitter output of:at least 6 W with a 12/14 V electrical systemat least 10 W with a 28 V electrical systemThe RT6211 therefore provides particularly high transmitter output when operated in a 28 V aircraft electrical system and is well suited to installations requiring a powerful VHF communication solution.Dual Watch / SCAN ModeThe RT6211 supports Becker's Dual Watch function, also referred to as SCAN Mode.This allows a second frequency to be monitored in addition to the active frequency.For example, the pilot can communicate on the active frequency while simultaneously monitoring the standby frequency for incoming transmissions.Integrated 4-Place IntercomThe 10 W version of the Becker 6200 Series features an integrated VOX-controlled 4-place intercom.The intercom provides two separate intercom circuits and supports separate Push-to-Talk functions for pilot and co-pilot.In many installations, this can eliminate the need for a separate intercom system.The system can be adapted to different microphone, headset and cockpit configurations.External Audio InputThe integrated AUX audio input allows additional audio signals to be connected to the aircraft audio system.This can be used, for example, to reproduce audio warnings or signals from other avionics equipment through the connected headsets.Loudspeaker OutputIn addition to the headset outputs, the 6200 Series provides a powerful loudspeaker output.Output power is at least 4 W into 4 ohms.With a suitable installation, the system can therefore also drive an external cockpit loudspeaker.Flexible Remote InstallationThe RT6211 was specifically designed for remote installation.The radio module can be mounted at a suitable location within the aircraft and operated using a separate control unit.A typical configuration consists of:Becker RT6211 Remote TransceiverBecker RCU6211 Remote Control UnitThe RCU6211 uses a compact 2¼-inch / 58 mm format and requires very little instrument panel space.The remote concept also provides greater flexibility when planning the location of the radio module, antenna cabling and other installation components.Tandem OperationThe Becker 6200 Series also supports tandem configurations.This is particularly useful for gliders, motor gliders, training aircraft and other aircraft with tandem seating arrangements.Depending on the installation, multiple control positions can be used, allowing the radio to be operated from different cockpit positions.Robust DesignThe Becker 6200 Series was developed for demanding aviation environments.The unit operates without forced-air cooling or a cooling fan, eliminating additional moving components from the cooling system.Its robust design is intended to provide high reliability and long service life.Features:Professional VHF/AM aviation transceiverRemote transceiver for flexible installationAdvanced development of the proven RT6201Design Assurance Level C (DAL C)8.33 kHz and 25 kHz channel spacingFrequency range: 118.000 – 136.990 MHzUp to 2,280 channels with 8.33 kHz spacing760 channels with 25 kHz spacingAt least 6 W RF transmitter output at 12/14 VAt least 10 W RF transmitter output at 28 VDual Watch / SCAN ModeSimultaneous monitoring of a second frequencyIntegrated VOX-controlled intercom4-place intercomTwo separate intercom circuitsSeparate PTT functions for pilot and co-pilotAUX audio inputLoudspeaker outputAt least 4 W loudspeaker output into 4 ohmsAutomatic storage of recently used frequenciesRF signal indicationAdjustable squelch thresholdRemote operation via RCU6211Tandem operation possibleFlexible positioning of the radio moduleNo forced-air cooling requiredNo cooling fanRobust and low-maintenance designWide supply voltage rangeSuitable for 12 V and 24/28 V aircraft electrical systemsETSO/TSO certifiedFCC approvedTechnical Specifications:Model: Becker Avionics RT6211Device type: Remote VHF/AM Aviation TransceiverDesign Assurance Level: DAL CFrequency range: 118.000 – 136.990 MHzChannel spacing: 8.33 kHz / 25 kHzChannels at 25 kHz: 760Channels at 8.33 kHz: 2,280RF transmitter output at 12/14 V: ≥ 6 WRF transmitter output at 28 V: ≥ 10 WSupply voltage: 10.25 – 33 V DCEmergency operating voltage: 9.0 – 10.25 V DCCurrent consumption, receive / standby at 12 V: ≤ 140 mACurrent consumption, transmit at 12 V: < 2 ADual Watch: YesIntercom: Integrated / VOX controlledIntercom positions: Up to 4Intercom circuits: 2AUX audio input: YesHeadphone output: ≥ 300 mW into 150 ohms / ≥ 100 mW into 600 ohmsLoudspeaker output: ≥ 4 W into 4 ohmsSquelch: AdjustableMaximum operating altitude: 35,000 ftWeight: approx. 600 gDimensions:RT6211 Remote Transceiver with mounting frame:Width: approx. 67 mmHeight: approx. 40 mmLength: approx. 188 mmThe compact radio module can be installed separately from the control unit at a suitable location within the aircraft.Approvals / Standards:ETSO-2C37eETSO-2C38eTSO-C169aFCC approvedEASA Approval: EASA.21O.10075461Design Assurance Level: DAL CDual Watch / SCAN Mode:The integrated Dual Watch function allows a second frequency to be monitored in addition to the active frequency.This is particularly useful when preparing for a frequency change or when another relevant radio channel needs to be monitored simultaneously.Integrated Intercom:The 10 W version of the RT6211 provides an integrated VOX-controlled 4-place intercom.Two separate intercom circuits and individual PTT functions for pilot and co-pilot allow the system to be adapted to different cockpit configurations.Installation and Operation:The RT6211 is a remote transceiver without an integrated control panel.A suitable separate control unit, such as the Becker Avionics RCU6211, is required for operation.This allows the radio module to be installed independently of the instrument panel at a suitable location within the aircraft.Installation must be carried out in accordance with the applicable airworthiness, regulatory and technical requirements for the respective aircraft.Scope of Delivery:Becker Avionics RT6211 Remote VHF Transceiver, 10 W versionConnector kitMounting frameThe RCU6211 control unit is not included unless explicitly stated otherwise and is available separately.Additional wiring and installation accessories are available separately unless explicitly stated otherwise.The Becker Avionics RT6211, 10 W is a powerful solution for aircraft owners and avionics professionals looking for a professional, flexibly installable 8.33 kHz aviation communication system with DAL C design assurance.With up to 10 W transmitter output, Dual Watch, an integrated 4-place intercom, two separate intercom circuits and a flexible remote installation concept, the RT6211 is particularly suitable for demanding avionics installations where reliability, certification and flexible system integration are key requirements.
Average rating of 0 out of 5 stars
The Becker Avionics RT6211, 6 W is a professional remotely installed VHF/AM aviation transceiver with 8.33 kHz and 25 kHz channel spacing, designed for demanding and certified avionics installations. As the successor to the proven RT6201, the RT6211 combines compact dimensions, low weight and modern digital signal processing with comprehensive communication and audio functions.The RT6211 series features Design Assurance Level C (DAL C), meeting higher development and certification requirements than the previous RT6201 series with DAL D.Unlike a conventional panel-mounted aviation radio, the RT6211 has no integrated control panel. The radio module is installed at a suitable location within the aircraft and operated via a separate control unit, such as the Becker Avionics RCU6211.This remote concept provides exceptional installation flexibility and is particularly suitable for cockpits with limited instrument panel space or applications where the transceiver needs to be positioned independently of the control unit.DAL C – For Demanding Avionics InstallationsAn important feature of the RT6211 is its Design Assurance Level C (DAL C).Compared with the previous RT6201 with DAL D, the RT6211 series meets more stringent development and verification requirements.This makes the RT6211 particularly suitable for demanding certified avionics installations and professional aviation applications.8.33 kHz and 25 kHz Channel SpacingThe RT6211 supports both modern 8.33 kHz and conventional 25 kHz channel spacing.The complete VHF aviation communication band is covered.Up to 760 channels are available with 25 kHz spacing, while up to 2,280 channels can be used with 8.33 kHz spacing.The radio therefore meets the requirements for European 8.33 kHz aviation communication.6 W Transmitter OutputThis model is the 6 W version RT6211-(020).RF transmitter output is:at least 6 W with a 14 V aircraft electrical systemat least 6 W with a 28 V aircraft electrical systemThe full specified 6 W transmitter output is therefore available in both typical 12/14 V and 24/28 V installations.For applications requiring higher transmitter output, the RT6211 is also available in a version providing up to 10 W at 28 V.Modern Digital Signal ProcessingThe Becker Avionics 6200 Series uses modern Digital Signal Processing (DSP) technology.The high level of digital integration provides efficient signal processing while maintaining compact dimensions and low weight.The system is designed to provide reliable and intelligible radio communication under typical aviation operating conditions.Dual Watch / SCAN ModeThe RT6211 supports Becker's Dual Watch function, also referred to as SCAN Mode.This allows a second frequency to be monitored in addition to the active frequency.For example, the pilot can communicate on the active frequency while simultaneously monitoring the standby frequency for incoming transmissions.This is particularly useful when preparing for a frequency change or monitoring another relevant radio channel.Integrated 4-Place IntercomThe 6 W version of the RT6211 features an integrated 4-place intercom.The system supports two separate intercom circuits and provides comprehensive integration options for different headset and cockpit configurations.In many installations, this can eliminate the need for an additional standalone intercom system.AUX Audio InputThe integrated AUX audio input allows additional audio signals to be connected to the system.This can be used, for example, to reproduce audio warnings or signals from other avionics equipment through the connected headsets.Powerful Loudspeaker OutputIn addition to the headphone outputs, the Becker 6200 Series provides an output for an external cockpit loudspeaker.Output power is at least 4 W into 4 ohms.With a suitable installation, the radio can therefore directly drive an appropriate cockpit loudspeaker.Remote InstallationThe RT6211 was specifically designed for remote installation.The transceiver module can be mounted independently of the instrument panel at a suitable location within the aircraft.Operation is provided through a separate control unit.A typical installation consists of:Becker Avionics RT6211 Remote TransceiverBecker Avionics RCU6211 Remote Control UnitThe RCU6211 is designed for installation in a standard 58 mm / 2¼-inch instrument cutout and requires very little instrument panel space.Separating the radio module from the control unit allows the available installation space to be used particularly efficiently.Tandem OperationThe Becker 6200 Series also supports tandem configurations.This is particularly useful for gliders, motor gliders, training aircraft and other aircraft with tandem seating arrangements.Depending on the installation, additional control positions can be provided, allowing the radio to be operated from different cockpit positions.Wide Supply Voltage RangeThe RT6211 operates over a wide supply voltage range, making it suitable for both typical 12/14 V and 24/28 V aircraft electrical systems.A lower voltage range is also provided for limited emergency operation.Compact and LightweightA major advantage of the remote concept is the compact design of the transceiver module itself.The RT6211 weighs only approximately 600 g.With mounting frame, the radio module measures approximately:Width: 67 mmHeight: 40 mmLength: 188 mmThis allows the unit to be installed flexibly at a suitable location within the aircraft.Robust DesignThe Becker Avionics 6200 Series was developed for professional aviation applications.The remote radio module is designed for an extended operating temperature range, making it suitable for installation locations outside the immediately heated cockpit area.Its robust construction is intended to provide high reliability and long service life.Features:Professional VHF/AM aviation transceiverRemote transceiver for flexible installationSuccessor to the proven RT6201Becker Avionics 6200 SeriesDesign Assurance Level C (DAL C)8.33 kHz and 25 kHz channel spacingUp to 2,280 channels with 8.33 kHz spacing760 channels with 25 kHz spacing6 W RF transmitter outputAt least 6 W at 14 VAt least 6 W at 28 VModern DSP technologyDual Watch / SCAN ModeSimultaneous monitoring of a second frequencyIntegrated intercom4-place intercomTwo separate intercom circuitsAUX audio inputHeadphone outputsIntegrated loudspeaker outputAt least 4 W loudspeaker output into 4 ohmsAdjustable squelchRemote operation via RCU6211Flexible positioning of the transceiver moduleTandem configurations possibleSuitable for 12/14 V and 24/28 V aircraft electrical systemsWeight only approx. 600 gRobust constructionExtended operating temperature range for the remote unitETSO/TSO certifiedFCC approvedTechnical Specifications:Model: Becker Avionics RT6211Version: RT6211-(020)Output version: 6 WDevice type: Remote VHF/AM Aviation TransceiverDesign Assurance Level: DAL CChannel spacing: 8.33 kHz / 25 kHzChannels at 25 kHz: 760Channels at 8.33 kHz: 2,280RF transmitter output at 14 V: ≥ 6 WRF transmitter output at 28 V: ≥ 6 WSupply voltage: 10.25 – 33 V DCEmergency operating voltage: 9.0 – 10.25 V DCCurrent consumption, receive / standby at 12 V: ≤ 140 mACurrent consumption, transmit at 12 V: < 2 ADual Watch: YesIntercom: IntegratedIntercom positions: Up to 4Intercom circuits: 2AUX audio input: YesHeadphone output: ≥ 300 mW into 150 ohms / ≥ 100 mW into 600 ohmsLoudspeaker output: ≥ 4 W into 4 ohmsSquelch: AdjustableMaximum operating altitude: 35,000 ftOperating temperature, remote unit: -40 °C to +55 °CShort-time operating temperature: up to +70 °CStorage temperature: -55 °C to +85 °CWeight: approx. 600 gDimensions:RT6211 Remote Transceiver with mounting frame:Width: approx. 67 mmHeight: approx. 40 mmLength: approx. 188 mmThe compact radio module can be installed separately from the control unit at a suitable location within the aircraft.Approvals / Standards:ETSO-2C37eETSO-2C38eTSO-C169aFCC approvedEASA Approval: EASA.21O.10075461Design Assurance Level: DAL CDual Watch / SCAN Mode:The integrated Dual Watch function allows a second frequency to be monitored while the active frequency remains available for communication.This makes it possible, for example, to monitor the next required radio frequency before changing over from the currently active channel.Integrated Intercom:The 6 W version of the RT6211 provides an integrated 4-place intercom with two separate intercom circuits.This allows the system to be adapted flexibly to different cockpit, headset and crew configurations.6 W Version:This product is the 6 W version of the Becker Avionics RT6211.Transmitter output is at least 6 W at both 14 V and 28 V supply voltage.For installations requiring higher transmitter output with a 28 V electrical system, the RT6211 is also available in a 10 W version.Installation and Operation:The RT6211 is a remote transceiver without an integrated control panel.A compatible separate control unit is required for operation, such as the Becker Avionics RCU6211.The RCU6211 features an illuminated display and supports both 8.33 kHz and 25 kHz channel spacing. Its compact 58 mm / 2¼-inch format requires very little instrument panel space.The RT6211 transceiver module itself can be mounted independently at a suitable location within the aircraft.Installation must be carried out in accordance with the applicable airworthiness, regulatory and technical requirements for the respective aircraft.Scope of Delivery:Becker Avionics RT6211 Remote VHF Transceiver, 6 W versionConnector kitMounting frameThe RCU6211 control unit is not included and must be ordered separately.Additional wiring and installation accessories are available separately unless explicitly stated otherwise.The Becker Avionics RT6211, 6 W is a professional solution for pilots, aircraft owners and avionics specialists looking for a compact, certified and flexibly installable 8.33 kHz remote aviation communication system with DAL C design assurance.With 6 W transmitter output at both 14 V and 28 V, Dual Watch, an integrated 4-place intercom, comprehensive audio functions and a weight of only approximately 600 g, the RT6211 is particularly suitable for demanding avionics installations where flexibility, low weight and professional certification are key requirements.
Average rating of 0 out of 5 stars

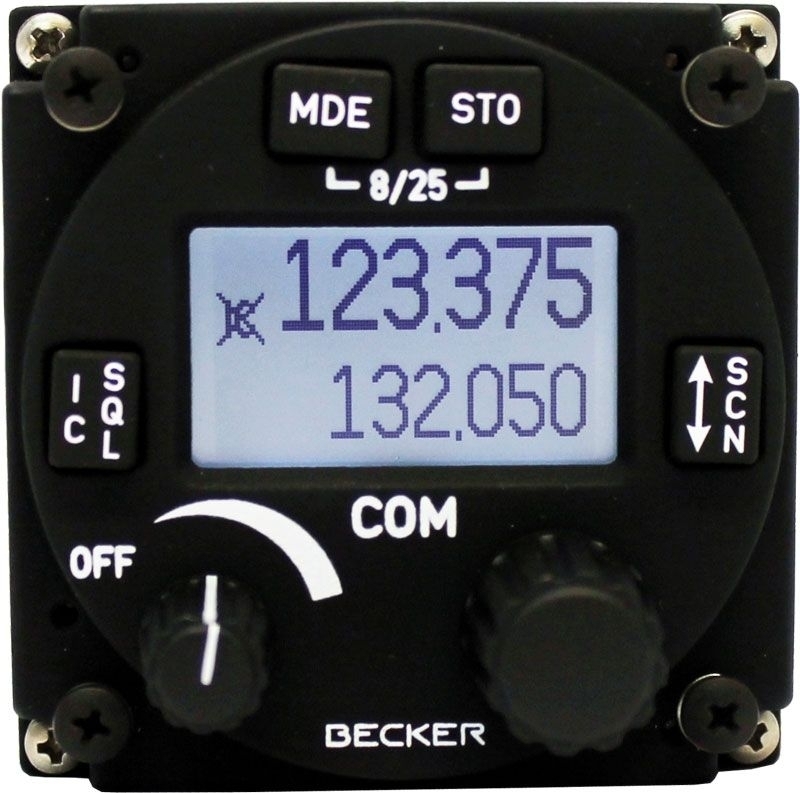

The Becker Avionics RCU6211 is a compact Remote Control Unit for the Becker Avionics 6200 Series. It is designed in particular as a separate control head for the RT6211 Remote Transceiver, enabling a space-saving and highly flexible aviation radio installation.The control unit is installed in the instrument panel, while the actual RT6211 transceiver can be mounted at a suitable location elsewhere within the aircraft. This makes the combination of RCU6211 and RT6211 particularly suitable for cockpits with limited panel space and installations where the radio transceiver and control unit need to be physically separated.The RCU6211 supports both 8.33 kHz and 25 kHz channel spacing and features a clear illuminated display for convenient operation under different lighting conditions.Control Unit for the RT6211Together with a Becker Avionics RT6211, the RCU6211 forms a complete remote aviation communication system.The RT6211 provides the actual radio and audio processing, while the RCU6211 serves as the cockpit control interface.The essential functions of the connected aviation radio can be conveniently controlled from the RCU6211.The remote concept offers an important advantage: only the compact control head needs to be installed in the instrument panel, while the transceiver itself can be positioned independently at another suitable location within the aircraft.8.33 kHz and 25 kHz Channel SpacingThe RCU6211 supports both modern 8.33 kHz and conventional 25 kHz channel spacing.When used with a compatible Becker 6200 Series transceiver, the system supports up to:760 channels with 25 kHz spacing2,280 channels with 8.33 kHz spacingThis makes the system suitable for current European 8.33 kHz aviation communication requirements.Illuminated DisplayThe RCU6211 features a clear display with adjustable backlighting.The illumination provides good readability under a wide range of lighting conditions, from bright daylight to night operations.The compact user interface was specifically designed for cockpit use and provides quick access to the essential radio functions.Compact 58 mm Installation FormatA major advantage of the RCU6211 is its compact design.The control unit has front dimensions of approximately 61 × 61 mm and is designed for installation in a standard 58 mm / 2¼-inch round instrument cutout.This allows the RCU6211 to be integrated into many conventional aircraft instrument panels.The required installation depth behind the instrument panel is only approximately 45 mm without connectors.This is particularly advantageous in aircraft where space behind the instrument panel is limited.Only Approx. 200 gThe RCU6211 weighs only approximately 200 g.By separating the control head from the transceiver, the weight of the actual radio module can be positioned at a suitable location within the aircraft, while only the lightweight control unit is installed in the instrument panel.DAL C – For Demanding Avionics InstallationsThe RCU6211 belongs to Becker Avionics' newer 621X series and features Design Assurance Level C (DAL C).The previous RCU6201 belongs to the 620X generation with DAL D.The RCU6211 is therefore particularly suitable for demanding certified avionics installations requiring the higher design assurance level of the 621X series.Tandem ConfigurationsThe RCU6211 is also suitable for tandem installations and additional control positions.This can be particularly useful in:GlidersMotor glidersTraining aircraftTandem cockpitsSpecial-purpose aircraftDepending on the system configuration, radio functions can therefore be controlled from different positions within the aircraft.Flexible InstallationThe combination of RT6211 and RCU6211 provides a high degree of installation flexibility compared with a conventional single-block aviation radio.The RCU6211 is installed in a position within easy reach and view of the pilot.The RT6211 Remote Transceiver can be mounted independently at another suitable location within the aircraft.This allows available installation space to be used efficiently and provides greater freedom when designing or upgrading an avionics installation.Features:Remote Control Unit for Becker Avionics communication systemsDesigned for the RT6211 Remote TransceiverBecker Avionics 6200 SeriesDesign Assurance Level C (DAL C)Supports 8.33 kHz channel spacingSupports 25 kHz channel spacingUp to 2,280 channels with 8.33 kHz spacingUp to 760 channels with 25 kHz spacingIlluminated displayAdjustable backlightingCompact cockpit control interfaceFront dimensions approx. 61 × 61 mmDesigned for a 58 mm / 2¼-inch instrument cutoutLow installation depthOnly approx. 45 mm installation depth without connectorsWeight only approx. 200 gFlexible remote installationSuitable for tandem configurationsAdditional control positions possibleSuitable for demanding certified avionics installationsEASA certifiedTechnical Specifications:Model: Becker Avionics RCU6211Device type: Remote Control UnitSeries: Becker Avionics 6200 SeriesDesign Assurance Level: DAL CChannel spacing: 8.33 kHz / 25 kHzChannels at 25 kHz: up to 760Channels at 8.33 kHz: up to 2,280Display: IlluminatedBacklighting: AdjustableFront dimensions: approx. 61 × 61 mmPanel cutout: 58 mm / 2¼ inchInstallation depth behind panel: approx. 45 mm without connectorsWeight: approx. 200 gDimensions / Installation:The RCU6211 has compact front dimensions of approximately 61 × 61 mm and is designed for installation in a standard 58 mm / 2¼-inch round instrument cutout.The required installation depth behind the instrument panel is only approximately 45 mm without connectors.This makes the control unit particularly suitable for cockpits where available installation space is limited.Compatibility with RT6211:The RCU6211 is the appropriate separate control unit for the Becker Avionics RT6211 Remote Transceiver.The RT6211 itself does not feature an integrated control panel. Operation of the radio is therefore provided through a compatible Remote Control Unit such as the RCU6211.This allows the control unit and transceiver to be installed separately within the aircraft.Tandem Operation:The RCU62 series was also designed for tandem configurations and additional control positions.This makes the system particularly suitable for training aircraft, gliders, motor gliders and other aircraft where radio operation from more than one cockpit position is required.Approvals:The RCU6211 belongs to Becker Avionics' 621X series and features Design Assurance Level C (DAL C).Depending on the exact RCU6211 variant and installation, the applicable Becker Avionics certification and approval documentation must be observed.Installation:The RCU6211 is installed in the aircraft instrument panel and connected to a compatible Becker Avionics radio system.When used with an RT6211, the actual Remote Transceiver can be installed independently of the control head at a suitable location within the aircraft.Installation must be carried out in accordance with the applicable airworthiness, regulatory, technical and approval requirements for the respective aircraft.Scope of Delivery:Becker Avionics RCU6211 Remote Control UnitThe RT6211 Remote Transceiver is not included with this product and must be ordered separately.Additional wiring and installation accessories are available separately unless explicitly stated as included.The Becker Avionics RCU6211 is an ideal control unit for a flexibly installed Becker RT6211 aviation communication system. With its compact 58 mm installation format, illuminated display, support for 8.33 kHz and 25 kHz channel spacing, low weight of approximately 200 g and DAL C design assurance, it is particularly well suited to modern and demanding avionics installations.By separating the control unit from the Remote Transceiver, the radio module can be positioned flexibly within the aircraft while only the compact RCU6211 needs to occupy valuable instrument panel space.
