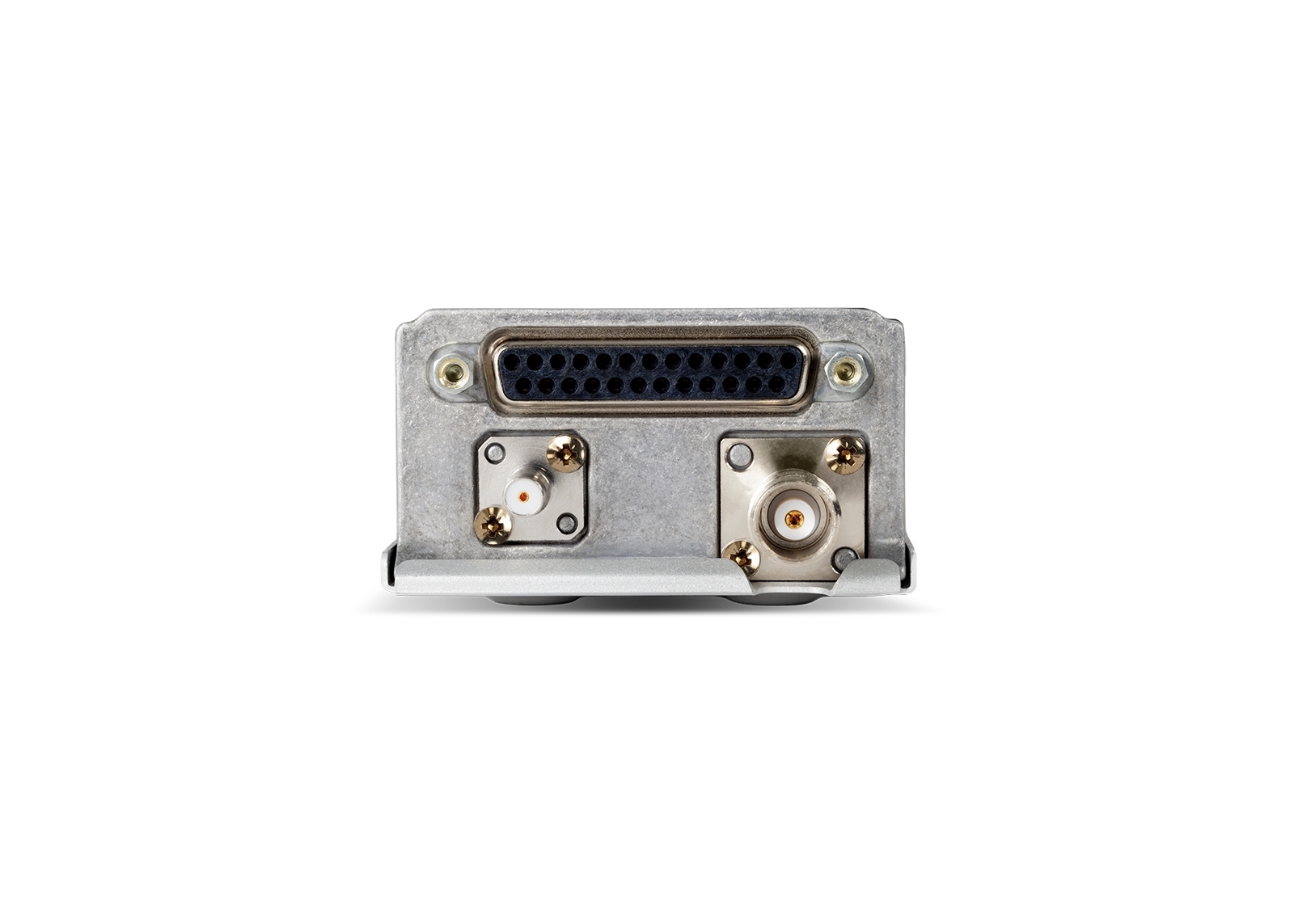

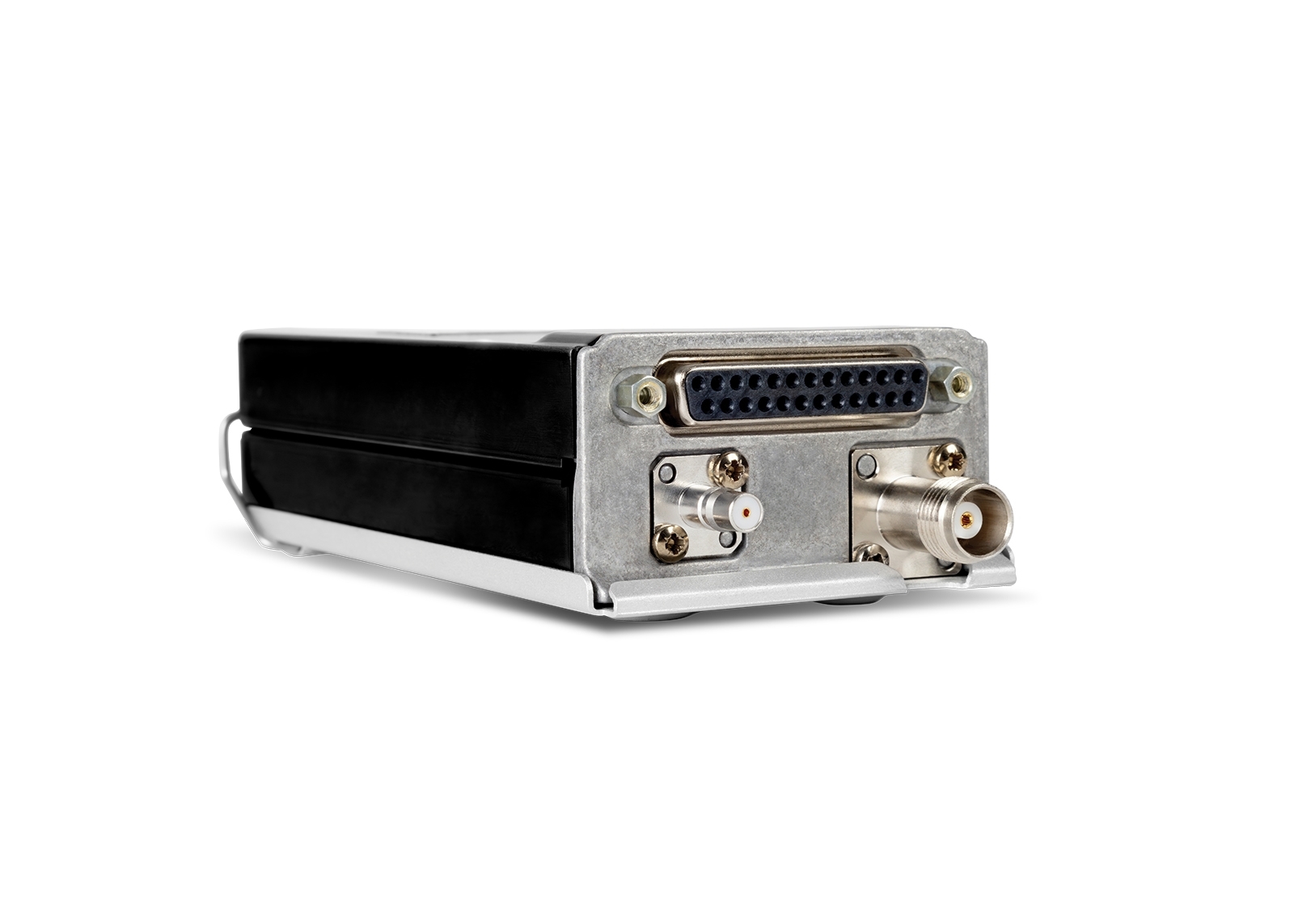

Trig Transponder TT23G Class 1, incl. Installation-Kit
Product number:
25744
Product information "Trig Transponder TT23G Class 1, incl. Installation-Kit"
Smallest transponder for general aviation
The control unit can be fitted either in a standard 57 mm round housing or in a cut-out with a height of just 433 mm
Mode S certified and 1090 ES ADS-B Out capable
Integrated blind encoder
ETSO / FAA approved
Level 2 / Class 1
Transmit power 250 watts, operating voltage 9–33 VDC, weight approx. 440 g
Control unit dimensions: 44 x 63 x 54 mm
Main unit dimensions: 48 x 68 x 160 mm
Supplied with installation kit, EASA Form 1
