Garmin aera 660

The NEW AERA 660 Next-Gen Aviation Portable

Dedicated Compact Portable Navigator

The aera 660 features a 5-inch capacitive touchscreen display that is optimized for cockpits and various types of flying. An elegant yet rugged design allows the aera 660 to withstand harsh environments, meeting stringent temperature tests and helicopter vibration standards. The Garmin signature direct-to feature is always available so it’s easy to command navigation functions or find nearest airports from any page.

3D Vision

The 3D Vision page within the aera 660 leverages a worldwide terrain database to create a rich, 3D representation of rising terrain near the aircraft, while overlaying GPS-derived airspeed, altitude and vertical speed alongside flight plan information. 3D Vision also displays lateral and vertical (VNAV) deviation bars and includes a 360-degree HSI, which displays course deviation, track, bearing and more.

Connext® Wireless Connectivity

Wireless connectivity options set the aera 660 even further apart from other portables on the market. Wireless database updating capabilities add to the unique feature set of the aera 660. When connected to Wi-Fi, pilots can easily download and update aviation databases without the need to physically connect the aera to a computer. Additionally, the aera 660 supports connectivity with the Garmin VIRB® XE HD action camera, so pilots can control recording and take photos.

When paired with the GTX 345, Flight Stream or the GDL 39/GDL 39 3D, ADS-B traffic and weather1 is wirelessly transferred and displayed on the aera 660. ADS-B traffic information may be viewed on the moving map, IFR/VFR charts and dedicated traffic pages, which also leverages patent-pending features such as TargetTrend™ and TerminalTraffic™.

Enhanced Basemap, Global Charting Options, and More

Comprehensive chart options provide pilots with an easy path to a paperless cockpit in a compact device, which may be qualified for use as either a Class I or Class II Electronic Flight Bag (EFB). Geo-referenced IFR enroute, VFR sectional charts and Garmin FliteCharts® terminal procedures are available as part of the expansive database offerings associated with the aera 660. Using FliteCharts, pilots can easily view departure procedures (DPs), standard terminal arrival routes (STARs) and geo-referenced approach charts.

Connect with Garmin Avionics

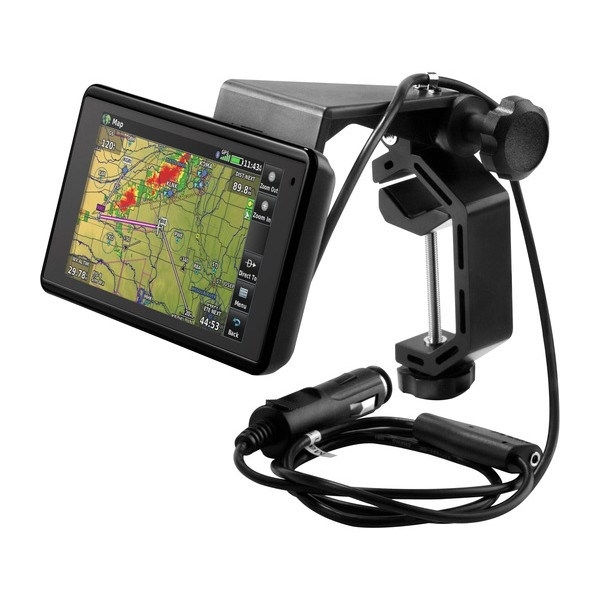

The aera 660 comes with an aviation mount kit and cigarette lighter adapter as a standard accessory. Pilots can connect an optional bare wire cable to the aircraft instrument panel and expand the utility of the aera 660 by utilizing power, audio and dual RS-232 connections. When paired with a navigator such as the GTN 650/750 touchscreen series or the GNS 430W/530W, the aera 660 can receive flight plan data entered into the navigator over a serial port and remain synchronized throughout the flight. When connected to a NAV/COM such as the GTR 225, GNC 255, GTR 200, SL 30 or SL 40, frequencies and airport identifiers can also be transferred from the aera to the corresponding NAV/COM. Additionally, ADS-B traffic and weather1 can be transferred via the wired connection to the aera 660 when linked to the GTX 345, GDL 39 or GDL 39 3D.

Features:

• Physical dimensions: 5.5”W x 3.4”H x .8”D (14.1 x 8.7x 2.1 cm)

• Display size, WxH: 4.35"W x 2.61"H (11.1 x 6.6 cm); 5.08" diag (12.9cm)

• Display resolution, WxH: 480 x 800; portrait and landscape orientation

• Display type: touchscreen WVGA color TFT with white backlight

• Weight: 8.64 ounces (245 g) with battery; 7.23 ounces (205 g) without battery

• Battery: removable, rechargeable lithium-ion

• Battery life: Up to 4 hours during most daytime conditions, 80% backlight) and wireless connectivity in the cockpit, e.g. GTX 345; up to 6 hours during typical nighttime conditions, (5% backlight) and without wireless connectivity.

• SBAS/WAAS/GLONASS receiver: high-sensitivity with WAAS position accuracy

• Voltage range: 10-35

• IFR or VFR: VFR

• Traffic Information Services (TIS) alerts compatible: yes

• Accepts data cards: yes (microSD™ cards)

In the box:

Garmin aera660 unit, Yoke Mount, Aviation Mount, charging cables, US/EU charging adaptors, Battery
