Telex Airman 8+ ANR
Product information "Telex Airman 8+ ANR"

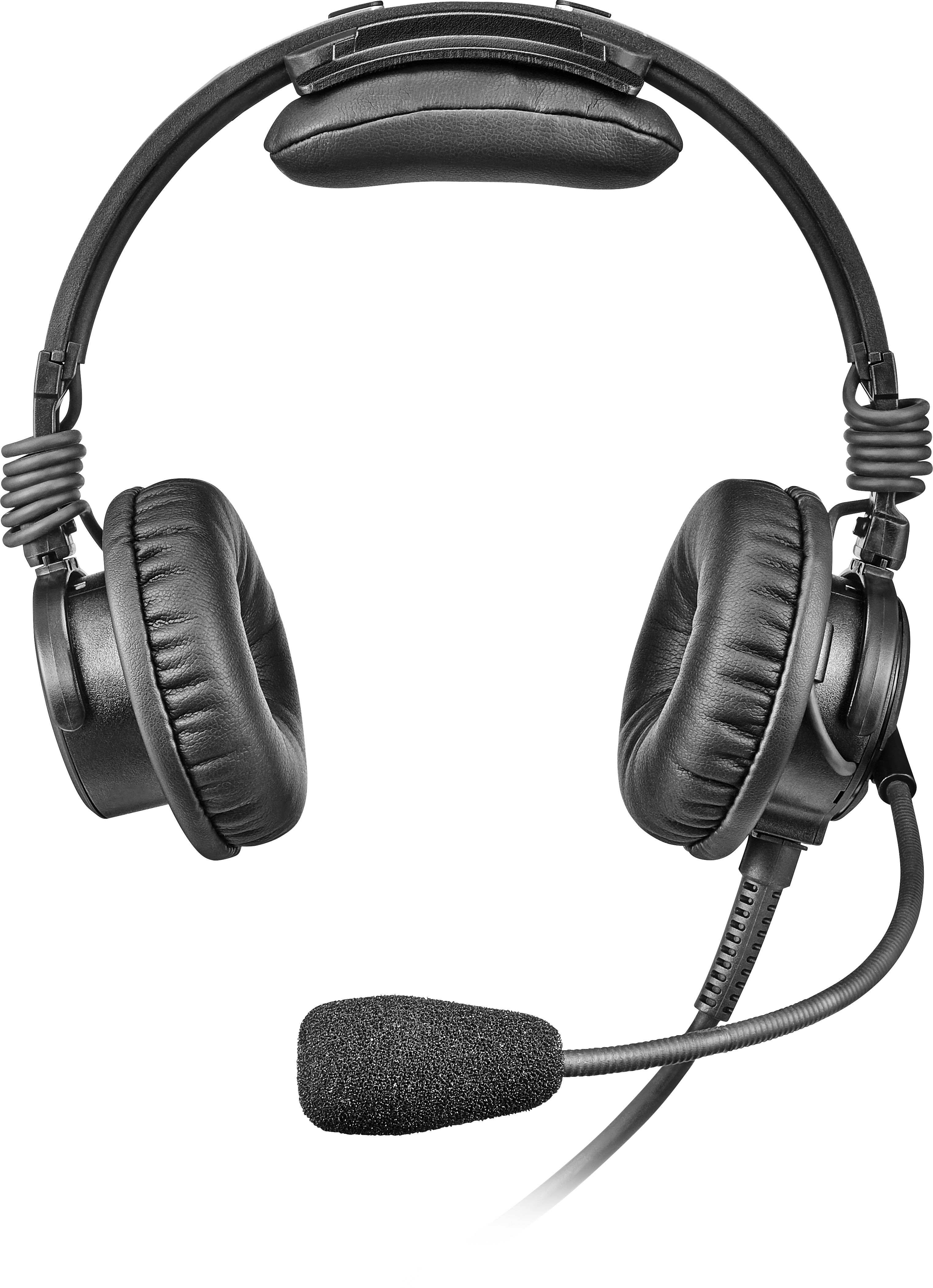

The Telex Airman 8+ is a lightweight noise-reducing headset designed specifically for optimizing pilot communications in commercial and business turbine aircraft. Building on the tradition of the Airman 850 and the Airman 8, Airman 8+ has improved ANR capability and comfort. The Airman 8+ is among the lightest Active Noise Reduction headsets on the market and one of only three FAA TSO C-139a approved ANR headsets to utilize Telex’s proprietary battery-free system. Larger pliable ear cushions and headband pad combined with dual axis ear cup pivots provide long flight wearing comfort.
Technical data:

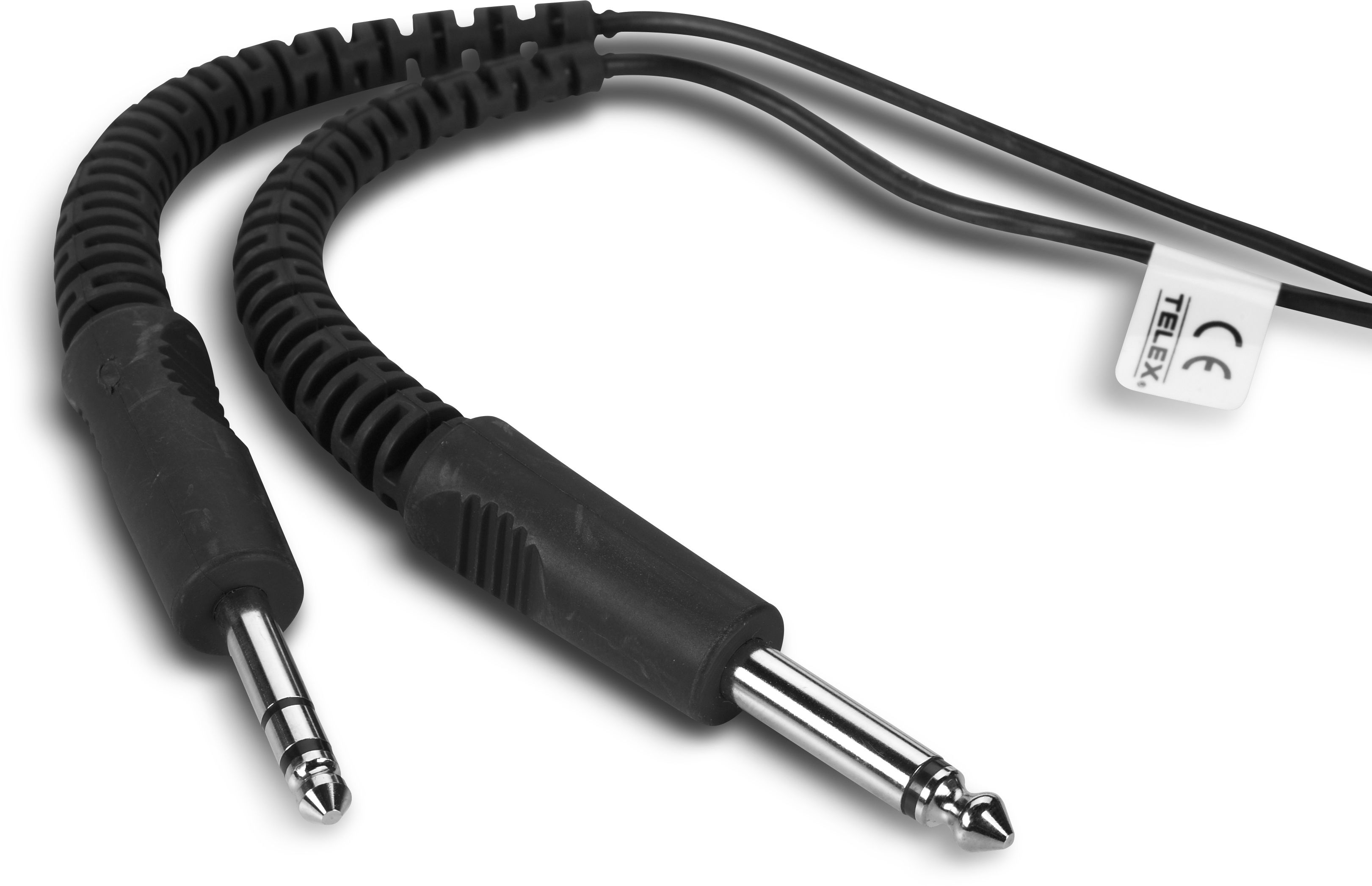

Connector plug: PJ plug (microphone PJ-068, headphones PJ-055).
Headset type: dynamic
Microphone type: electret microphone
Impedance: 600 Ohm ±20% @ 1 kHz
Headset frequency range: (per RTCA DO-214a) <15dB max. to min. in a range from 315 to 3150 Hz.
Sensitivity: (per RTCA DO-214a) 93 ±5 dBSPL (normal), 98 ±5 dBSPL (high)
Microphone sensitivity: (per RTCA DO-214a) -28 dB ±3 dB re 1V/Pa at 1kHz, 12V
Operating voltage: (per RTCA DO-214a) 8-28 V DC at microphone (470 Ohm load circuit) or at microphone connector (PJ-068)
Attenuation microphone: up to 18 dB or higher between 100Hz and 400Hz, 15 dB (minimum) between 100Hz and 300Hz.
Cable length: approx. 180 cm
Colour: majority black, stainless steel
3 years manufacturer warranty
Product features:
ultra-light weight (approx.120 g).
high wearing comfort due to soft padding
Flexible boom microphone arm, can be positioned on the right or left side
Battery-free ANR with integrated fail-safe to ensure constant communication
Sturdy steel bracket construction with long durability
Approval according to FAA TSO C139a
Scope of delivery:
Telex Airman 8+
windscreen

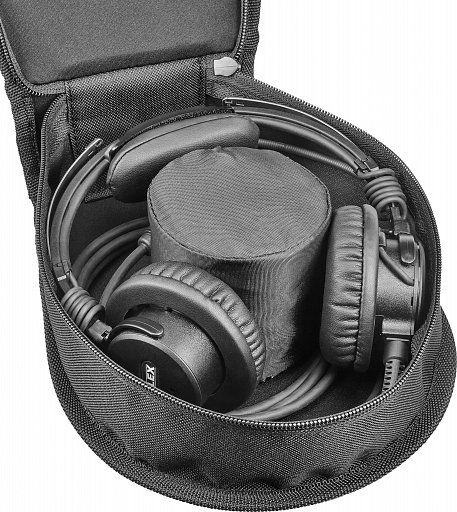

black headset bag
FAA certificate (on request)
